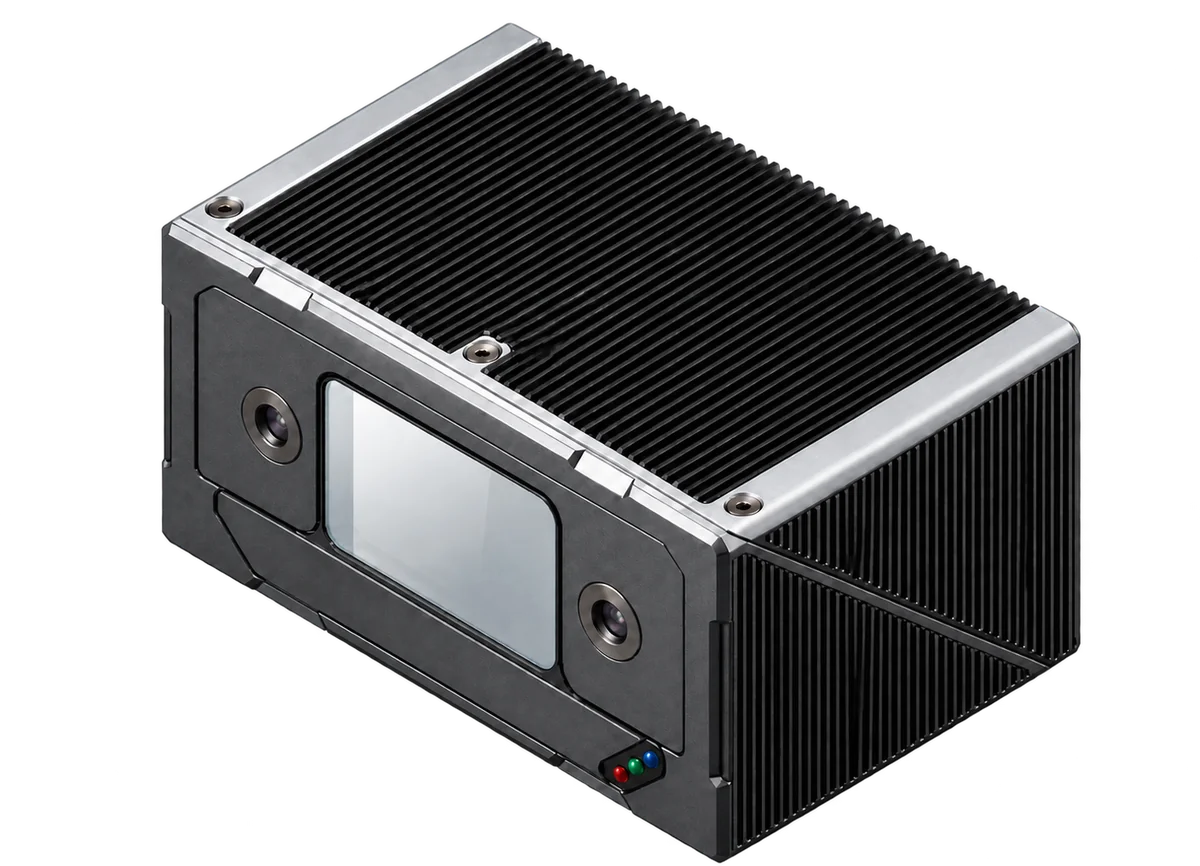

LUC-VISION™
RGBD camera for reflective, transparent and dark surfaces, with 0.21 mm precision (1σ, Fine mode)
Product Video
Key Performance
Performance Metrics
| Output | Aligned RGB + depth (RGBD) |
| Depth precision | 0.21 mm 1σ (Fine mode) |
| Surface coverage | Reflective, transparent, dark, textureless (transparent: sample evaluation) |
Why LUC-VISION™
Depth on Every Surface Type
Structured light projects a pattern onto a surface and reads how the pattern deforms. Stereo cameras match texture. Both methods assume that the surface scatters light back.
Mirror-finish metal reflects the pattern away. Glass lets the light pass through. Dark plastic returns almost no signal. In a bin, reflections between parts also create surfaces that do not exist.
LUC-VISION™ measures depth with FMCW coherent ranging. It uses the frequency difference between the return and the local oscillator, not the scattered light. A mirror or matte finish, with or without texture, does not decide whether the sensor gets depth.
Reflective and dark surfaces have published scans. For transparent parts, ship us a sample for evaluation.
Specifications
FMCW 3D sensing with Fast, Standard and Fine modes. Integrate with Luc Studio and the C++ SDK.
| Model | Range |
|---|---|
| LUC-VISION SR | 0.3–1 m |
| LUC-VISION MR | 0.3–3 m |
| LUC-VISION LR | 0.3–10 m |
Three operating modes
| Operating mode | Output points / frame | Acquisition + processing = total per frame | Precision 1σ (0.83 m, 10% diffuse target) |
|---|---|---|---|
| Fast | Approx. 512,000 (256 × 2,000) | 2.5 s + 100 ms ≈ 2.6 s | 2.13 mm |
| Standard | 262,144 (512 × 512) | 2.5 s + 150 ms ≈ 2.65 s | 1.48 mm |
| Fine | 262,144 (512 × 512) | 2.5 s + 600 ms ≈ 3.1 s | 0.21 mm |
Key specifications
| Parameter | Specification |
|---|---|
| Scanning FOV | 40° × 40° |
| Laser wavelength | 1550 nm |
| Nominal range error | < 2 mm |
| Default 3D acquisition | 0.4 Hz / 2.5 s |
| Camera image | 1088 × 1280 px |
| Camera frame rate | 10 fps |
| Communication | Gigabit Ethernet / TCP/IP |
| Output fields | XYZ / D / RGB / Intensity |
| Dimensions (W × H × D) | 150 × 80 × 100 mm |
| Mass | 1,200 g |
| Rated power input | 12 V DC / 3 A |
| Power consumption | Approx. 25 W |
| Operating temperature | 0–55 °C |
| Protection / laser class | IP65 / Class 1 |
| Software | Luc Studio |
| SDK | lucscopeSDK 2.0.0 / C++17 |
Processing latency excludes the 2.5 s acquisition time. Valid point counts depend on the scene. Precision is the median normal 1σ from offline validation at approximately 0.83 m on a 10% diffuse target. It is distinct from absolute range error. Dimensions exclude plugs and cables.
Applications
Mixed-material sorting: Metal, glass and dark plastic in the same bin.
Electronics inspection: Reflective solder joints and metal housings are the parts on which structured light fails most often.
Service robots: Glass doors and stainless steel surfaces stop being blind spots.
Documentation
The following documents are available upon request.
| Document | Format |
|---|---|
| Mechanical reference | |
| SDK API reference | HTML |
| Product datasheet | |
| Product datasheet (one page) | |
| Software manual | |
| Runtime manual | |
| Workflow SDK manual | |
| Workflow operator reference |
