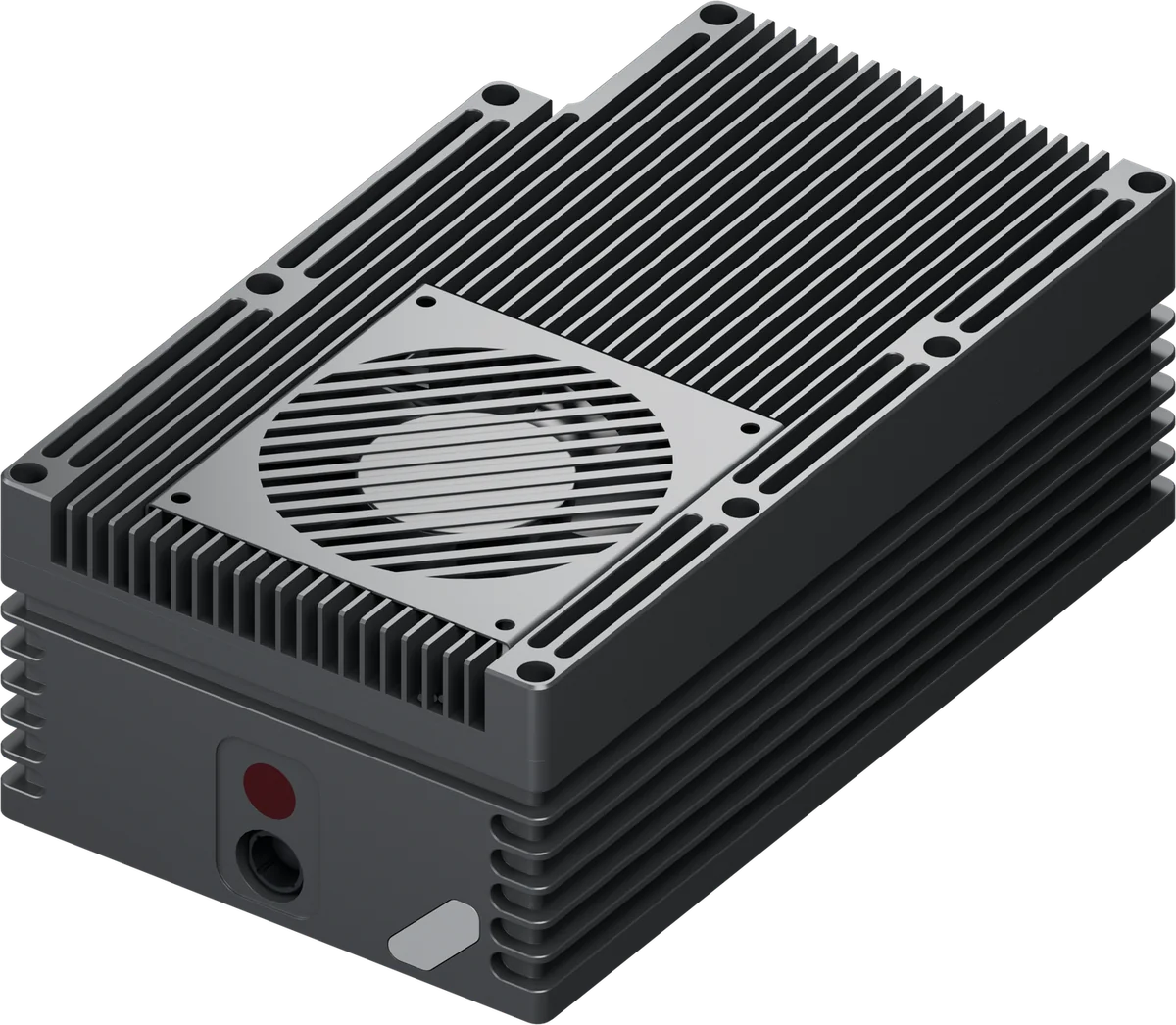

LUC-POINT™
Single-point FMCW ranging with 0.1 mm accuracy at 100 m for structural monitoring and precision manufacturing
Product Video
Key Performance
Performance Metrics
| Accuracy | 0.1mm at 100m |
| Measurement principle | FMCW coherent ranging |
| Output | Distance and radial velocity |
Why LUC-POINT™
Precision at Distance
Long range and high precision usually exclude each other. Laser triangulation loses precision with the square of distance. Interferometers are very precise, but their range is short and they react to vibration and air flow. Contact probes are stable, but they cannot reach far targets, and they wear.
LUC-POINT™ uses FMCW coherent ranging. It compares the frequency of the return with the local oscillator, not the return intensity. The sweep linearity and bandwidth of the laser set the precision, so precision does not degrade quickly with distance. Coherent detection also rejects ambient light.
Comparison with Common Methods
| Principle | Characteristics | |
|---|---|---|
| LUC-POINT™ | FMCW coherent ranging | High precision at long range, no contact |
| Laser interferometer | Interference counting | Higher precision, but short range and sensitive to the environment |
| Contact probe | Mechanical contact | Stable, but needs contact and wears |
| Laser triangulation | Geometric triangulation | Simple, but precision drops quickly with distance |
Specifications
Coherent single-point ranging with direct distance and instantaneous velocity measurement for long-range precision applications.
| Range (natural targets) | Accuracy at 100 m | Measurement rate |
|---|---|---|
| 0.2–100 m | ±0.1 mm | 5 kHz |
Measurement performance
| Parameter | Specification |
|---|---|
| Natural-target range | 0.2–100 m |
| Cooperative-target range | 0.5–300 m |
| Accuracy at 10 m | ±0.01 mm |
| Accuracy at 100 m | ±0.1 mm |
| Measurement rate | 5 kHz |
| Response time | ≤ 10 ms |
| Max. target speed | 10 m/s |
| Instantaneous velocity | Direct measurement |
| Ambient light immunity | ≥ 100,000 lux |
| Beam divergence | ≤ 0.1° |
Physical and environmental specifications
| Parameter | Specification |
|---|---|
| Laser wavelength | 1550 nm |
| Laser safety class | Class 1 |
| Operating voltage | 12 V DC |
| Power consumption | 12 W |
| Interface | RJ45 |
| Ingress protection | IP65 |
| Dimensions (W × H × D) | 105 × 64 × 175 mm |
| Operating temperature | −40 to +85 °C |
| Storage temperature | −40 to +105 °C |
| Humidity | 0–95% RH (non-condensing) |
Range depends on target type. Accuracy figures apply at the stated measurement distances.
