Every Photon Tells a Story.We Listen to Them All.
3D sensing for reflective, transparent and dark surfaces

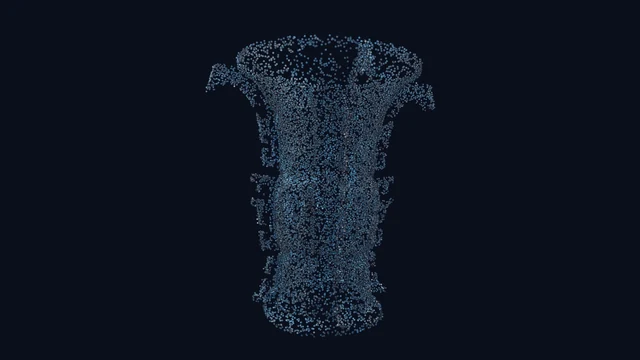

On reflective surfaces such as glossy car paint and bronze vessels, LUC-VISION captures color and depth together.
Loading...

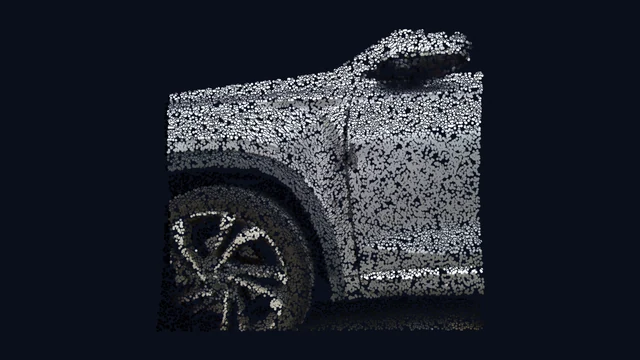

Measured: glossy white car paint, 786,432 points. Drag to rotate.

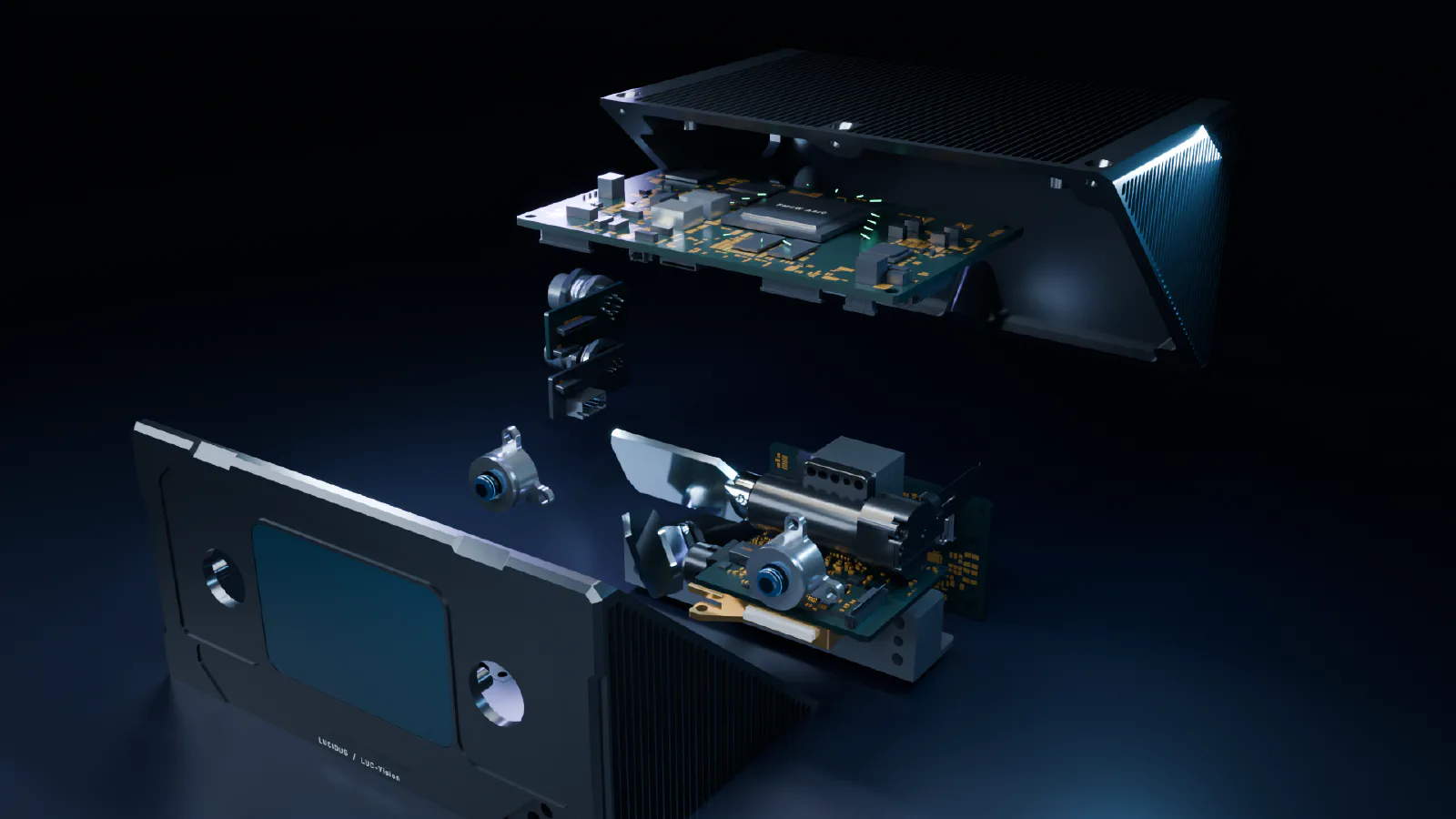

LUC-VISION™
RGBD depth camera that images reflective, transparent and dark surfaces consistently
On a mirror finish, structured light loses the pattern it projected. LUC-VISION does not need that pattern.
- Output
- Aligned RGB + depth (RGBD)
- Depth precision
- 0.21 mm 1σ (Fine mode)
- Surface coverage
- Reflective, transparent, dark, textureless
Find a solution by measurement problem
Each problem comes with its cause, our approach and its evidence status
Missing and false points on reflective metal surfaces
On polished stainless steel, chrome-plated parts and machined faces, large areas of the point cloud are missing or show false bumps
Missing depth on transparent parts, or the background measured instead
On glass, clear plastic and packaging film, the depth map is empty or shows the object behind
Weak returns and unstable measurement on dark surfaces
On dark plastic, rubber, carbon fiber and matte black coatings, the point cloud is sparse and noisy, or has no data at all
Accuracy drops at long range
Measurement is accurate up close, but accuracy drops clearly as the distance grows. Large parts, wide fields of view and long-range work are hard to cover
Strong light and outdoor sites swamp the signal
Under workshop skylights, outdoors and in brightly lit areas, accuracy drops clearly by day, and results differ between cloudy and sunny days
Crosstalk between units and laser power limits near people
Two cameras that run at the same time interfere with each other, and high-power blue-light systems cannot work near people

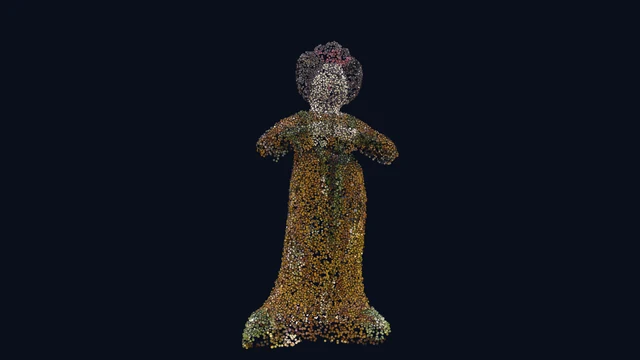

Measured cases
Point clouds measured with our own sensors. View them in 3D in your browser.
Application areas
3D sensing for smart manufacturing, intelligent robotics and advanced autonomous driving
Tell us about your measurement task
Send us part details or drawings. We will assess the feasibility.
